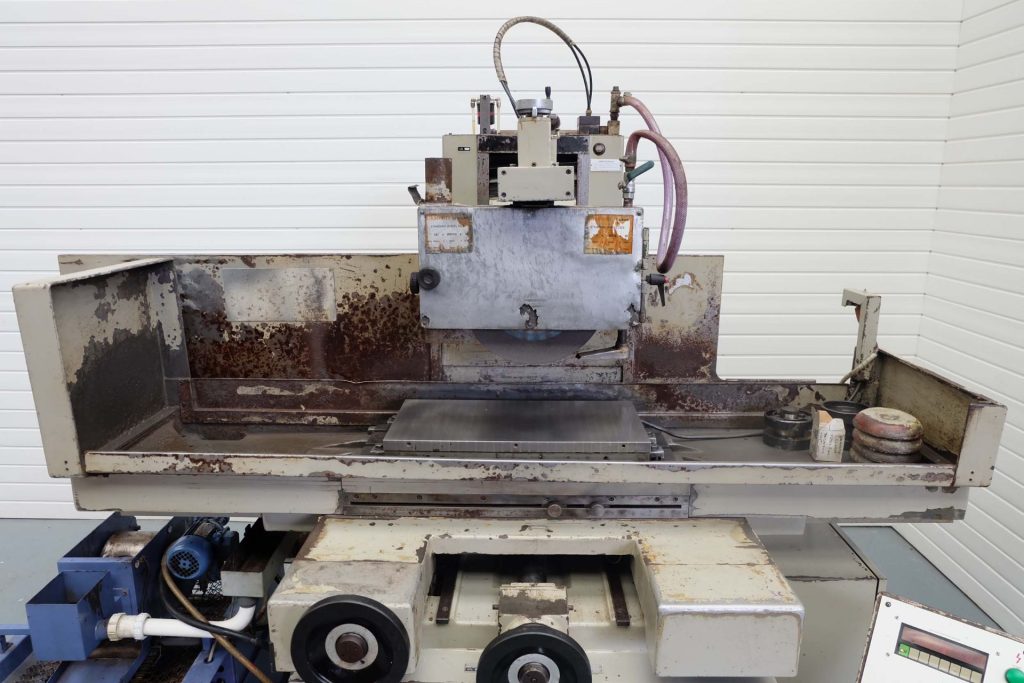

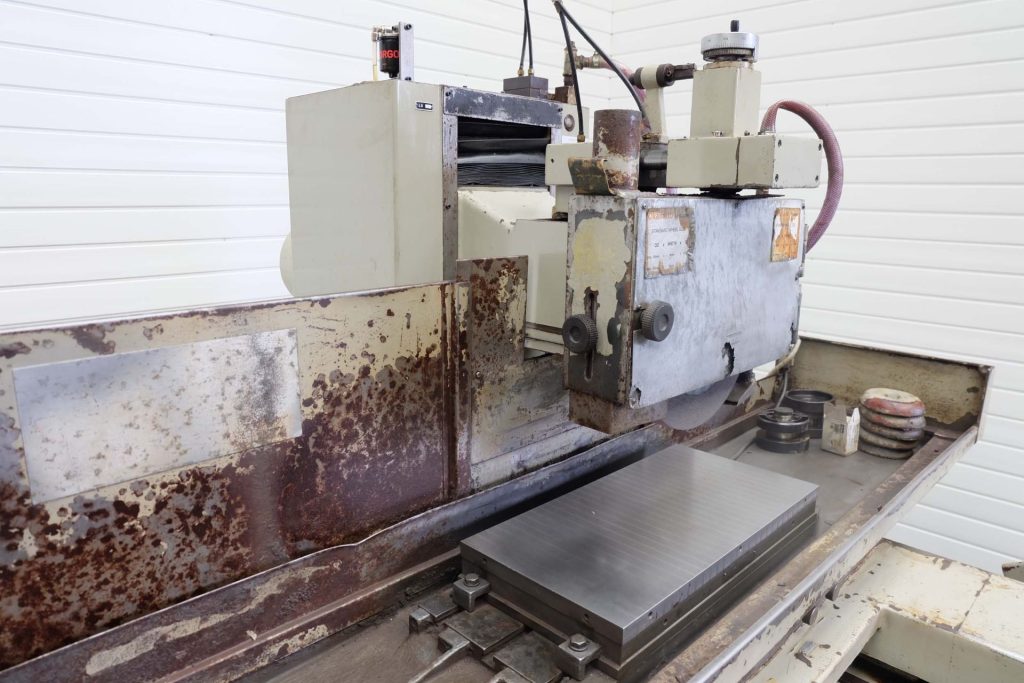

PSG-63 UDX SURFACE GRINDING MACHINE (REF 826)
| SPECIFICATIONS | |
|---|---|
| MAKE | OKAMOTO, MADE IN SINGAPORE |
| MODEL | PSG-63 UDX |
| GRINDING CAPACITY | 605.0 x 300.0 mm |
| Distance Under Wheel | 320.0 mm |
| GRINDING WHEEL SIZE | 355.0 x 38.0 x 127.0 mm |
| MAX LONGITUDINAL TRAVEL | 750.0 mm |
| MAX CROSS TRAVEL | 340.0 mm |
| TABLE LOAD | 420 KGS |

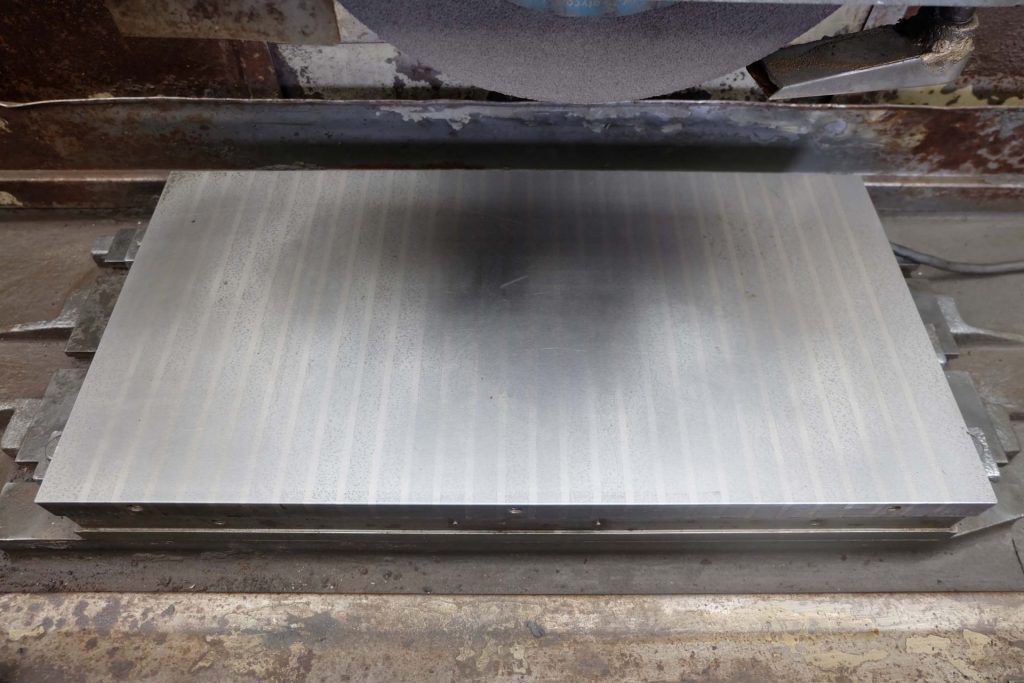

| ELECTRO MAGNETIC CHUCK SIZE | 600.0 x 300.0 mm |

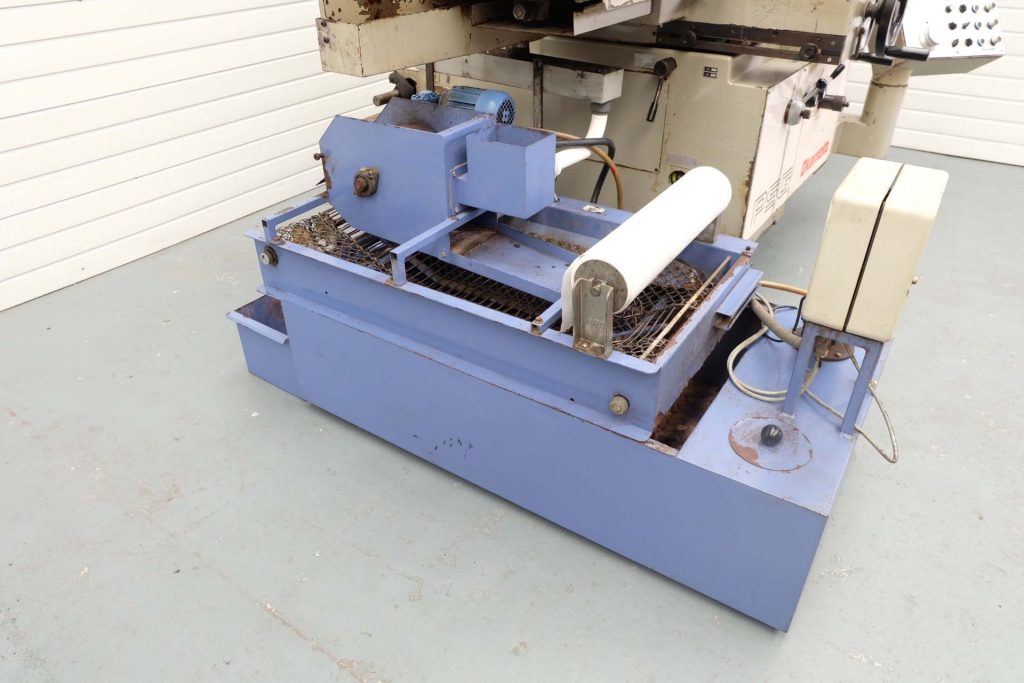

| PLUS | FILTER TYPE COOLANT TANK, OPERATORS MANUAL |
