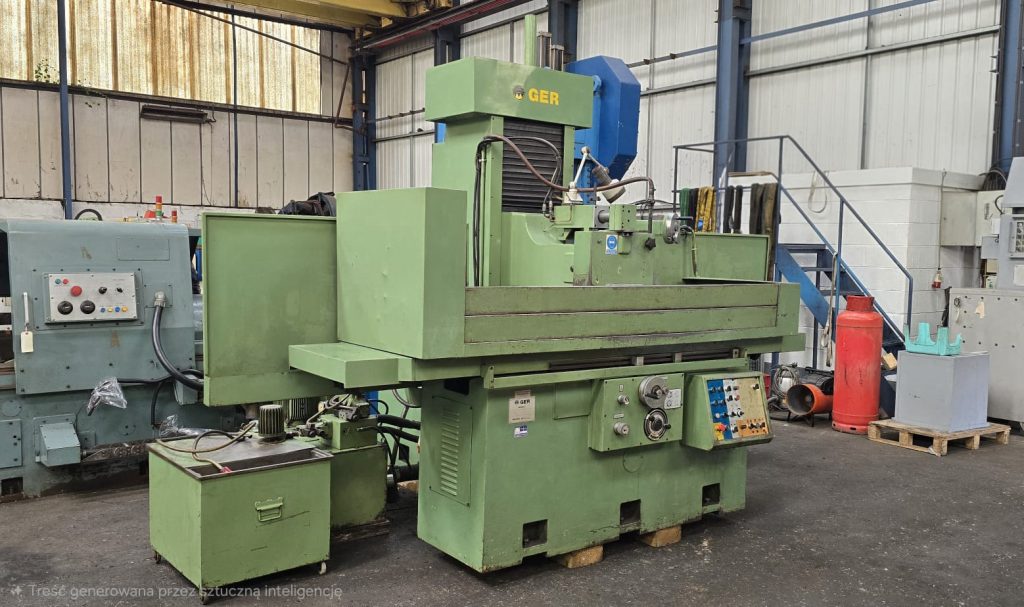

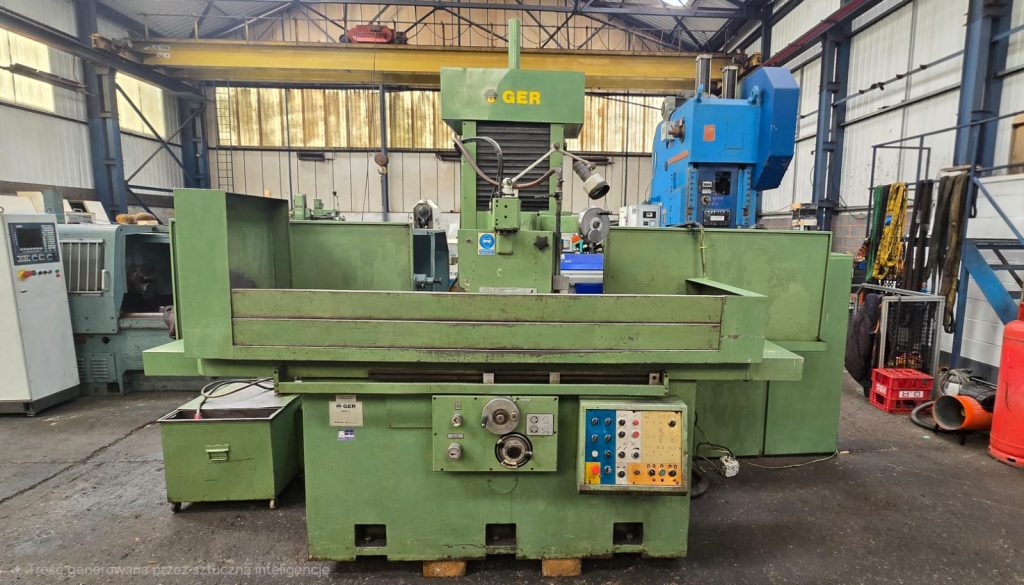

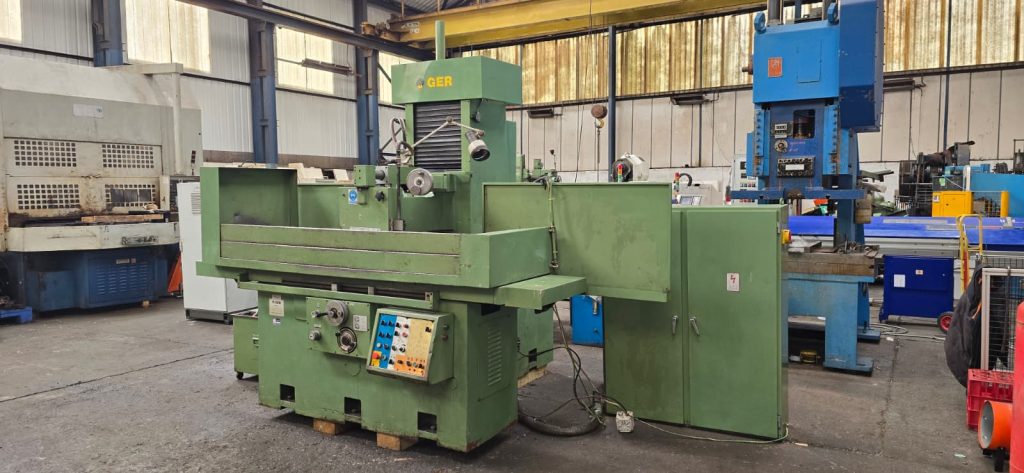

GER RS 10/60 SURFACE GRINDING MACHINE (REF 1032)
| SPECIFICATIONS | |
|---|---|
| MAKE | GER, MADE IN SPAIN |
| MODEL | RS 10/60 |
| TABLE LENGTH | 1300.0 mm |
| TABLE WIDTH | 600.0 mm |
| TRAVEL | X AXIS: 1600.0 mm Y AXIS: 600.0 mm |
| MAX DISTANCE (TABLE TO WHEEL) | 800.0 mm |
| MAX WORKPIECIE WEIGHT | 1000 KGS |
| GRINDING WHEEL SIZE | 400.0 x 100.0 x 127.0 mm |
| SPINDLE SPEED MAX | 1500 RPM |
| MACHINE DIMENSIONS | 4600.0 x 2700 x 2600.0 mm |
| MACHINE WEIGHT | 7600 KGS |

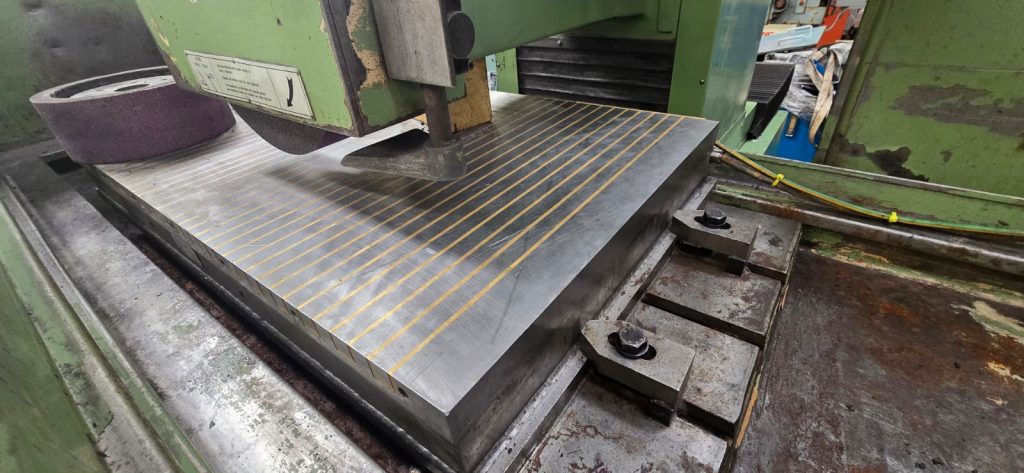

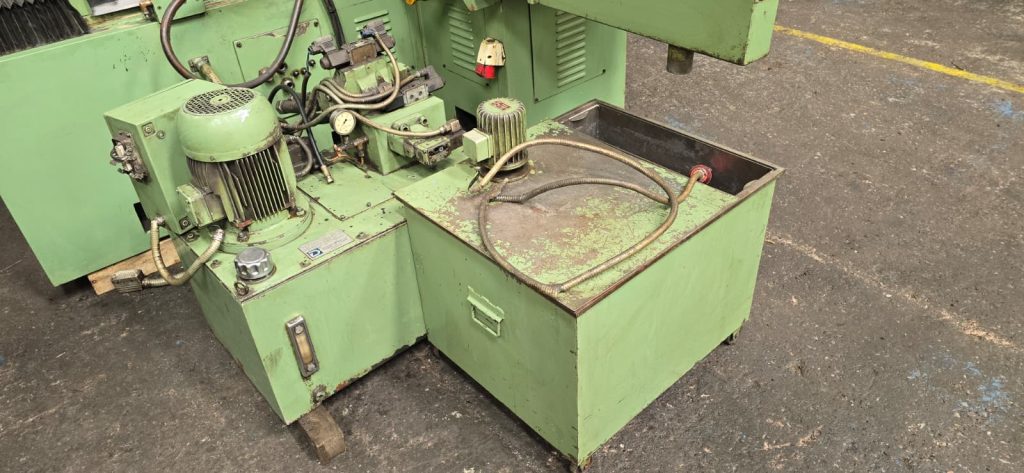

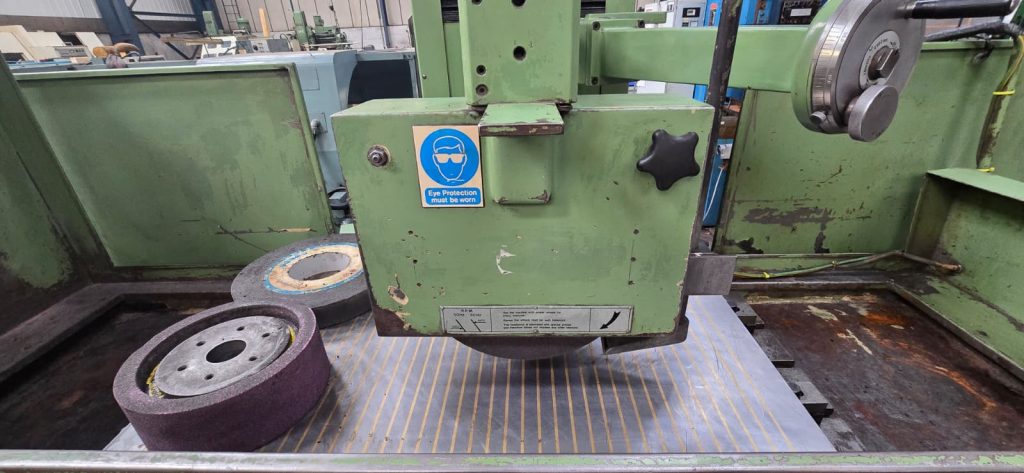

| PLUS | ELECTROMAGNETIC CHUCK SIZE: 1000.0 X 600.0MM HYDRAULIC PACK COOLANT SYSTEM WHEEL MOUNTED DRESSER |
