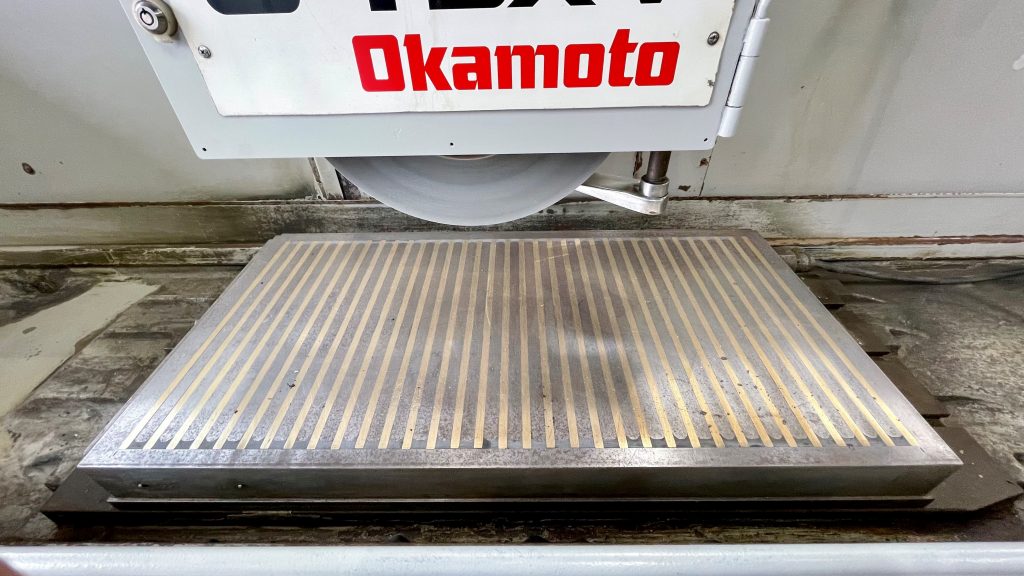

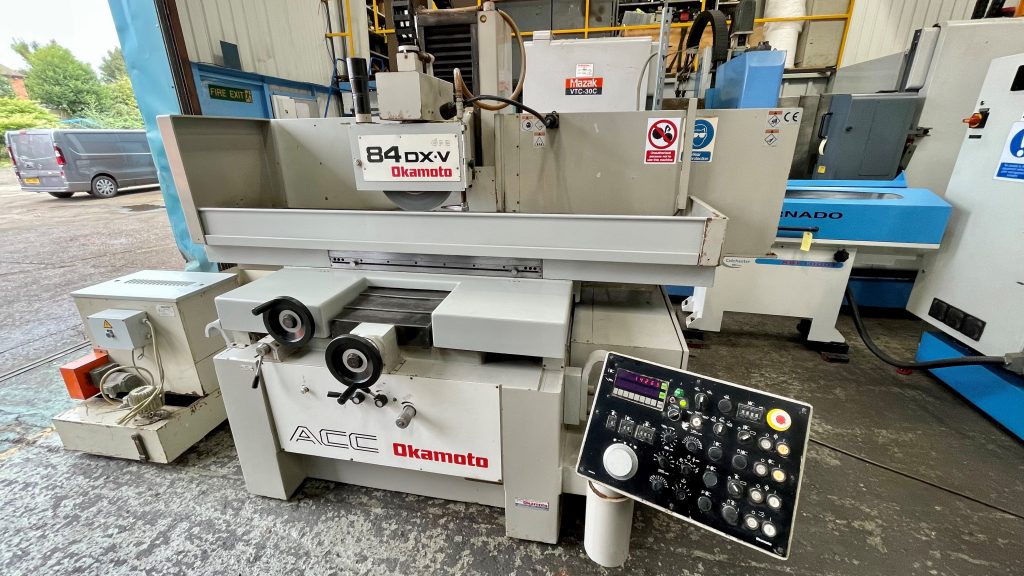

OKAMOTO ACC-84DX-V SURFACE GRINDING MACHINE

SPECIFICATIONS
MAKE OKAMOTO, Made in Singapore
MODEL ACC 84 DX-V
YEAR 1999
TABLE SIZE 800.0 x 400.0 mm
TABLE LOAD CAPACITY 700.0 Kg
GRINDING WHEEL SIZE ø355 / 305 x 38 x ø 127
CHUCK SIZE 800.0 x 400.0 mm
TRAVERSES X: 950.0 Y: 440.0
MAX WORKPIECE WEIGHT 47.5 ~ 547.5
FEED RATE 0 - 1500 rpm
SPINDLE MOTOR POWER 20 hp
MACHINE DIMENSIONS 4220.0 x 2205.0 x 2060.0 mm
MACHINE WEIGHT 4000 Kg
PLUS ENQUIRE TO FIND OUR MORE
