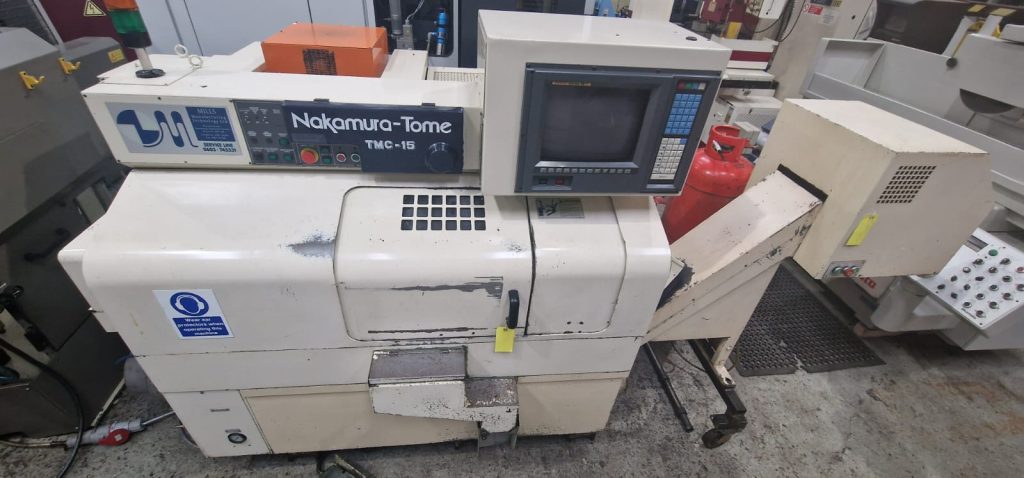

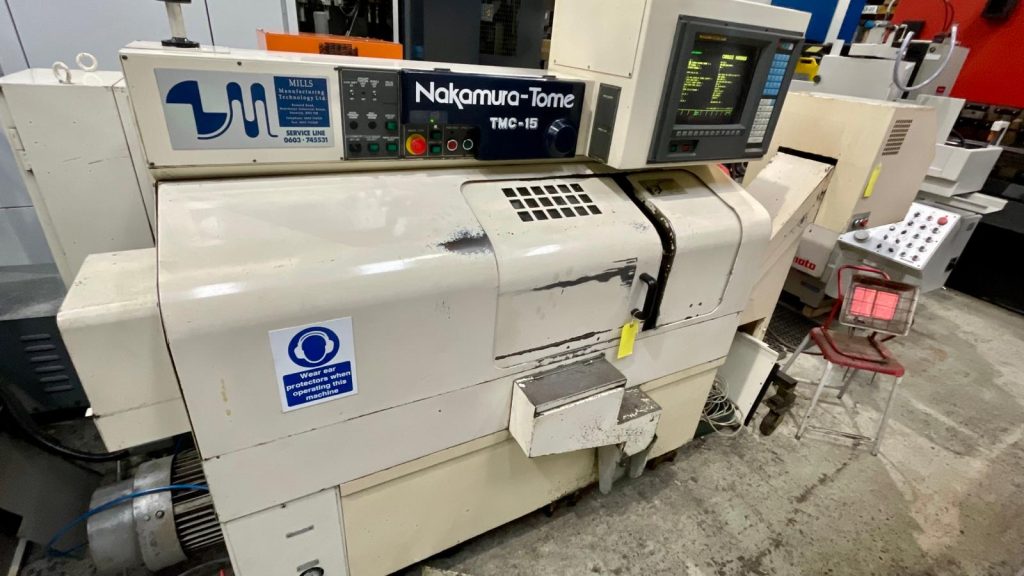

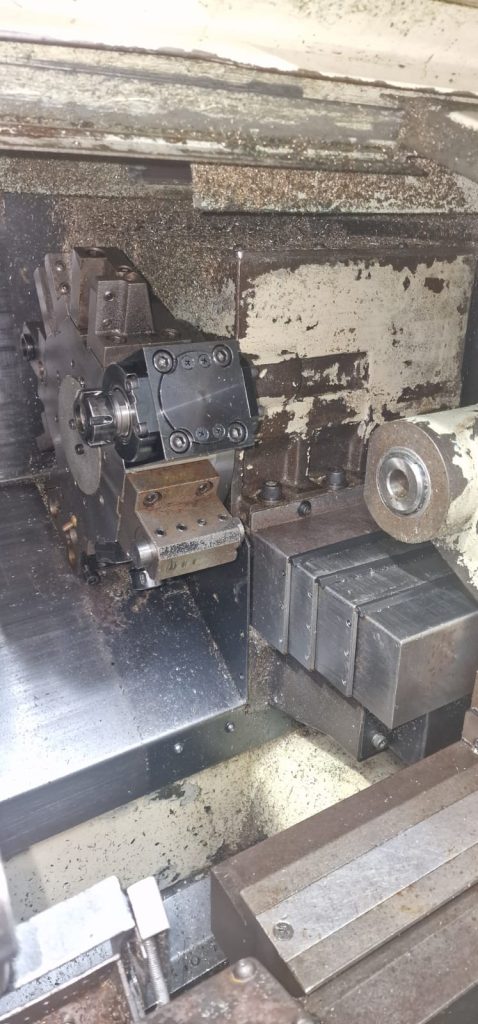

NAKAMURA TOME TMC 15 M CNC LATHE (REF 878)
| SPECIFICATIONS | |
|---|---|
| MAKE | NAKAMURA TOME, MADE IN JAPAN |
| MODEL | TMC 15 M |

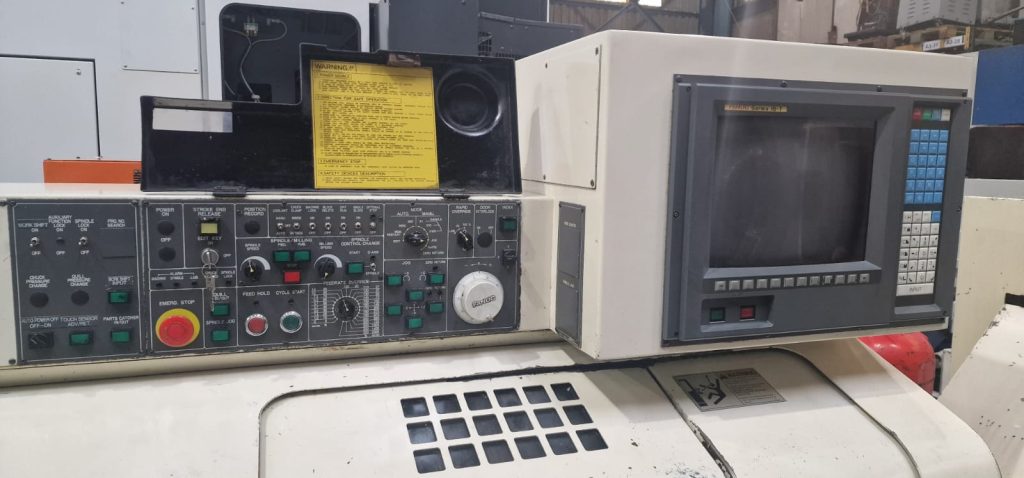

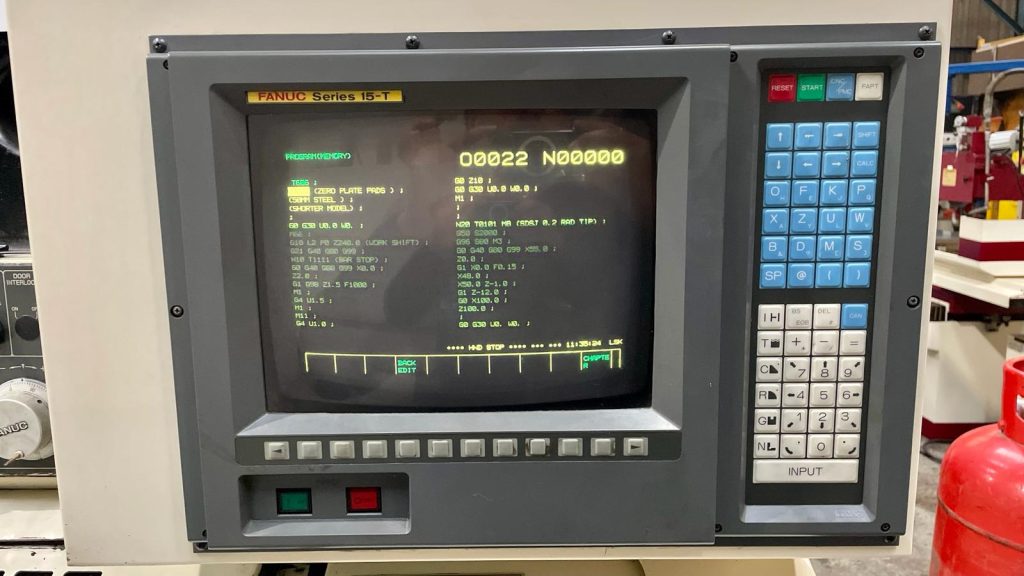

| CONTROL | FANUC 15-T |
| YEAR | 1991 |
| CHUCK SIZE | 165.0 mm (COLLECT CHUCK) |
| SWING OVER BED | 400.0 mm |
| MAX TURNING DIAMETER | 180.0 mm |
| MAX TURNING LENGTH | 249.0 mm |
| MAX BAR SIZE | 42.0 mm |
| TRAVEL (X, Z) | X AXIS: 180.0 mm Z AXIS: 270.0 mm |
| SPINDLE SPEED | 4,500 RPM |
| SPINDLE NOSE | A2-5 |
| SPINDLE MOTOR | 7.5 kW |
| TURRET | 12 STATIONS |

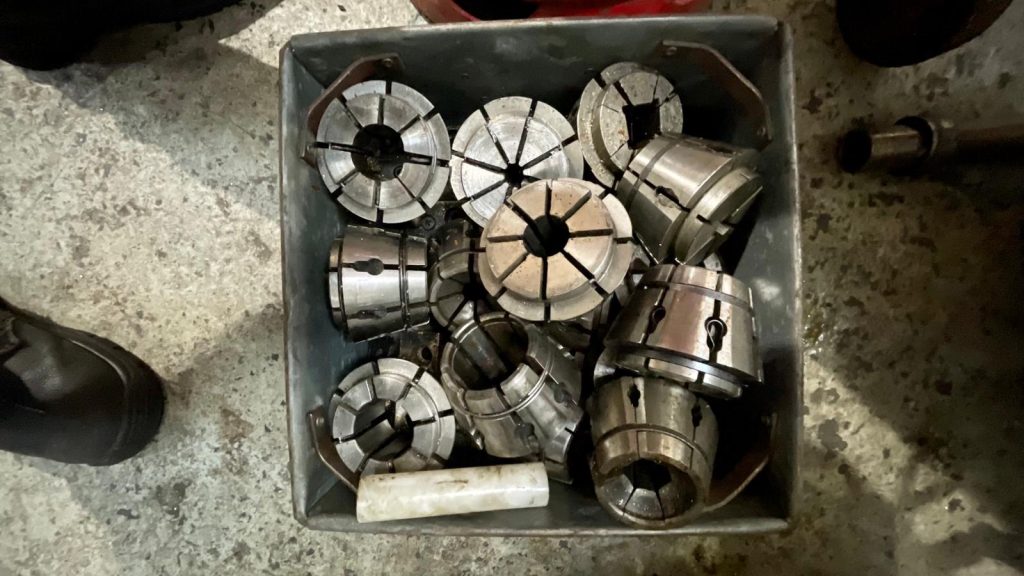

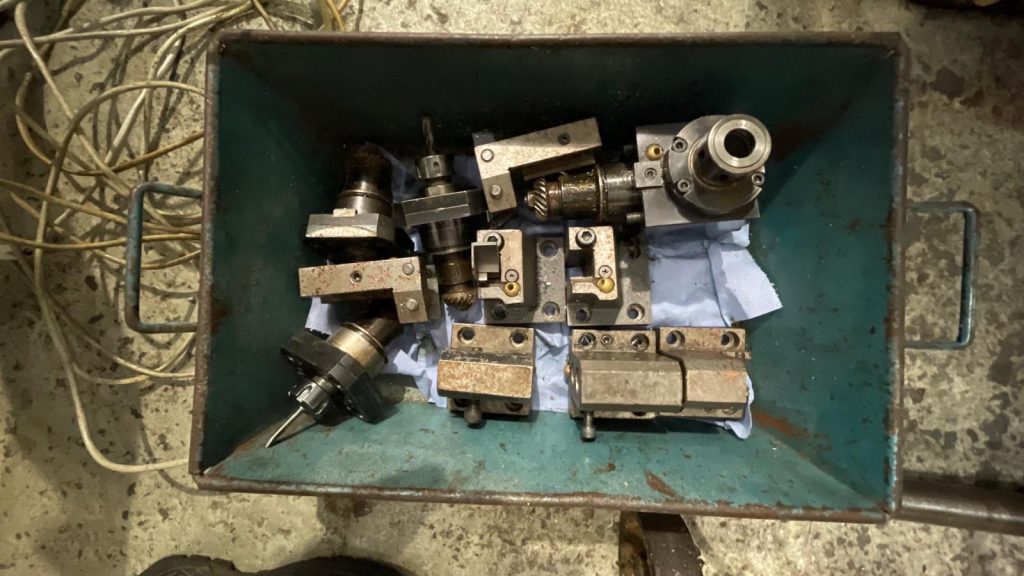

| PLUS | C AXIS MILLING QUANTITY OF DRIVEN TOOLS COLLECT CHUCK COLLETS LNS QUICKLOAD BARFEED SET OF BOOKS |
