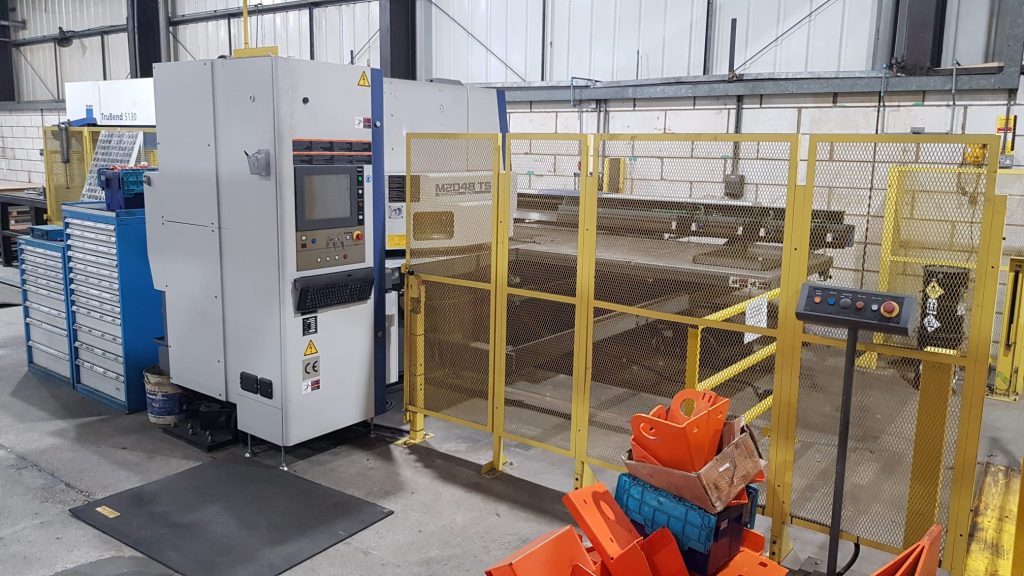

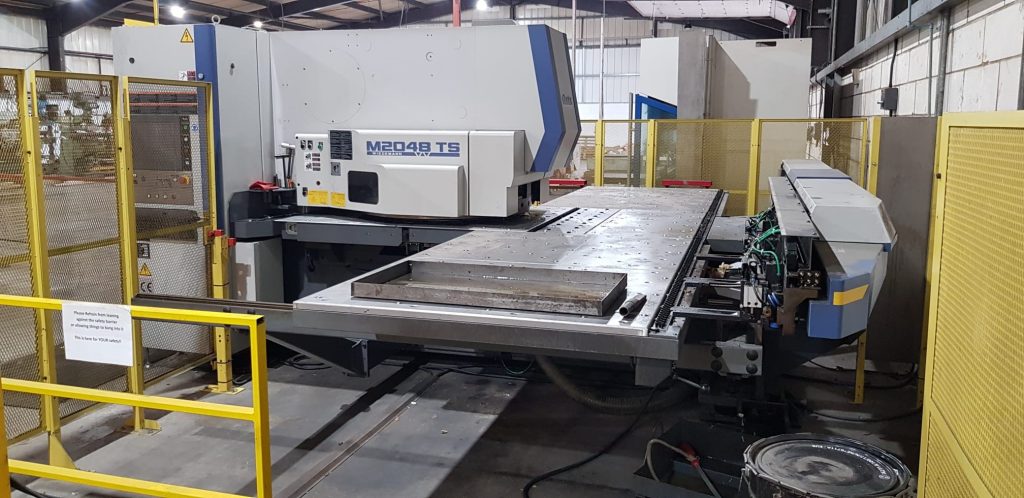

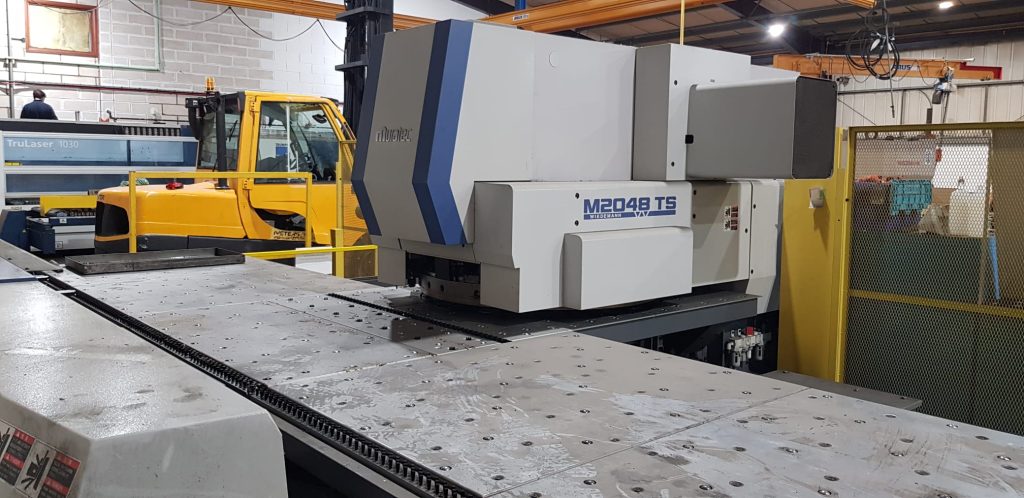

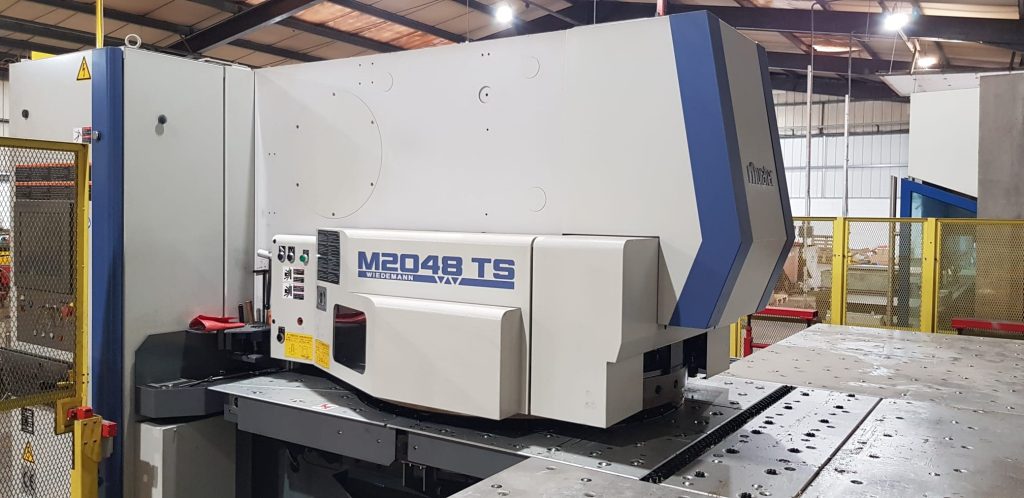

MURATEC WIEDEMANN MOTORUM 2048 CNC TURRET PUNCH MACHINE (REF 1016)
| SPECIFICATIONS | |
|---|---|
| MAKE | MURATA WIEDEMANN, MADE IN JAPAN |
| MODEL | MOTORUM 2048 |

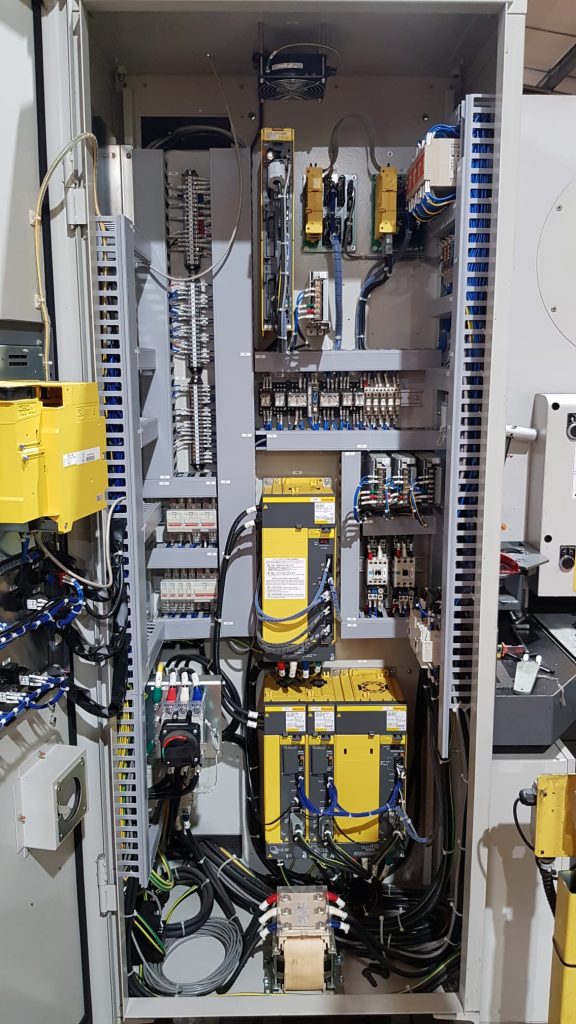

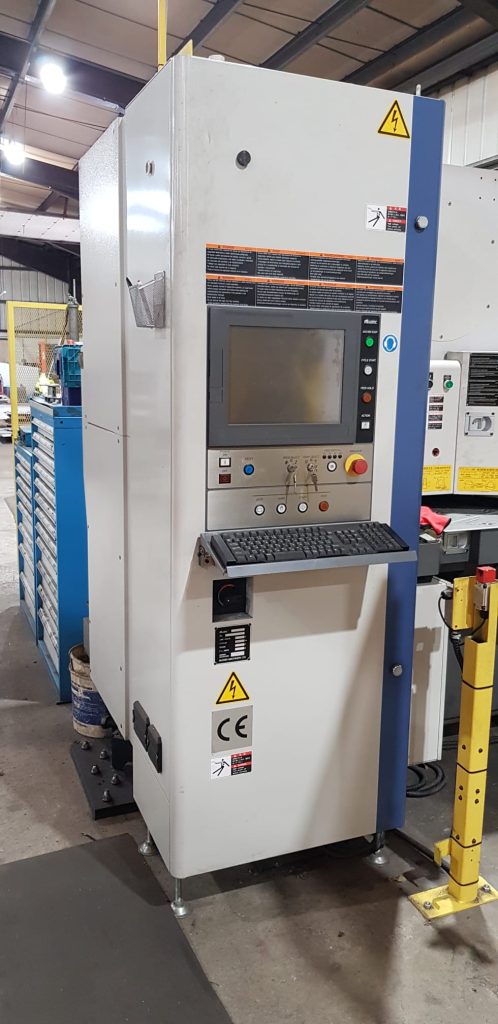

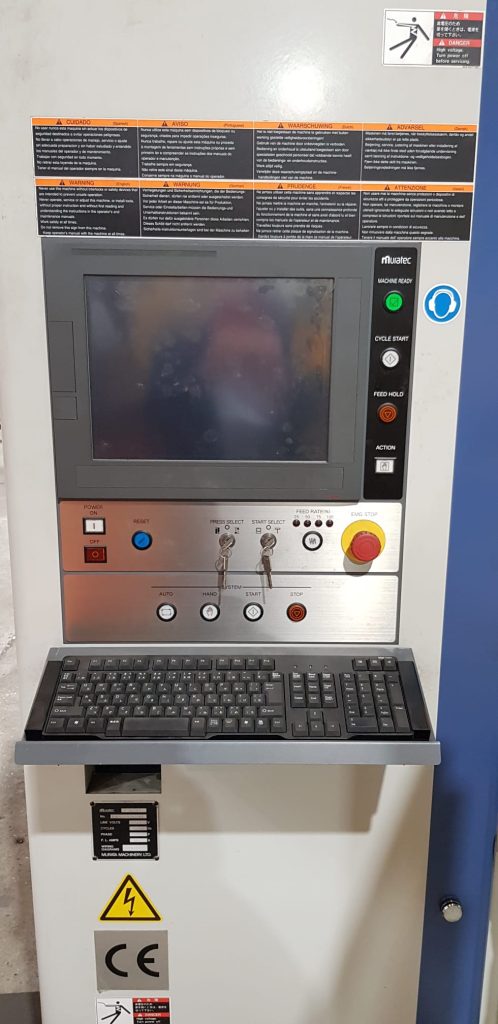

| CONTROL | FANUC 30i TOUCH SCREEN |
| YEAR | 2017 |
| CAPACITY | 20 TONS |
| SHEET SIZE (WITH ONE REPOSITIONING) | 1250mm x 2500mm |
| SHEET THICKNESS MAX. | 6.35 mm |
| Y, X STOKE | Y AXIS: 1360.0 mm X AXIS: 2550.0 mm |
| PUNCHING ACCURACY | +- 0.1mm |
| THROAT DEPTH | 1340.0 mm |
| MAX ALLOWABLE SHEET WEIGHT | 150 KG |
| HIT RATE 1.0T | 25 mm PITCH 8.3 mm stroke: 355 HPM 0.5 mm PITCH 1.4 mm stroke: 900 HPM |
| SIMULTANEOUS AXIS SPEED | 125 m/MIN |
| PUNCHING ACCURACY | +- 0.1 mm |

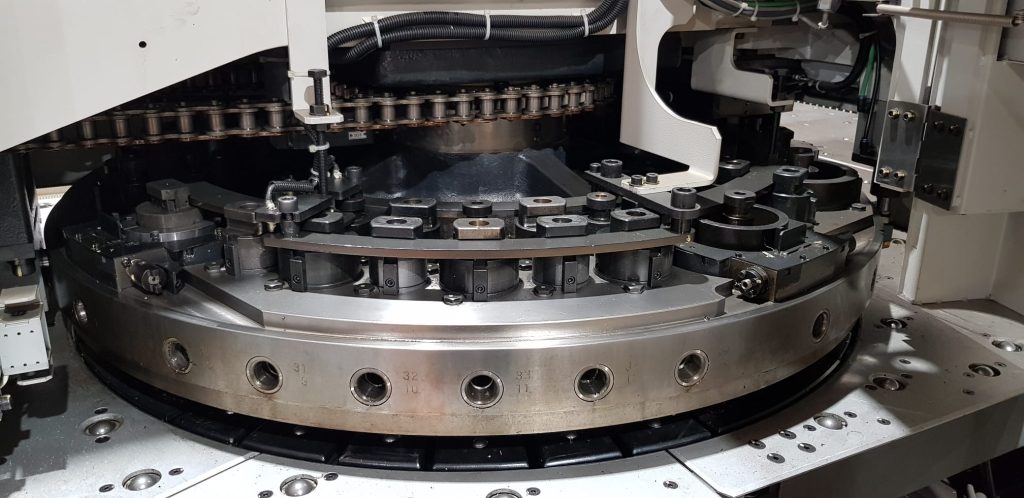

| TURRET INDEX SPEED | 35 RPM |
| COMPRESSED AIR | QUANITY: 100NL/MIN PRSSURE: 0.5 MPa |
| POWER SUPPLY | 19 kVA |

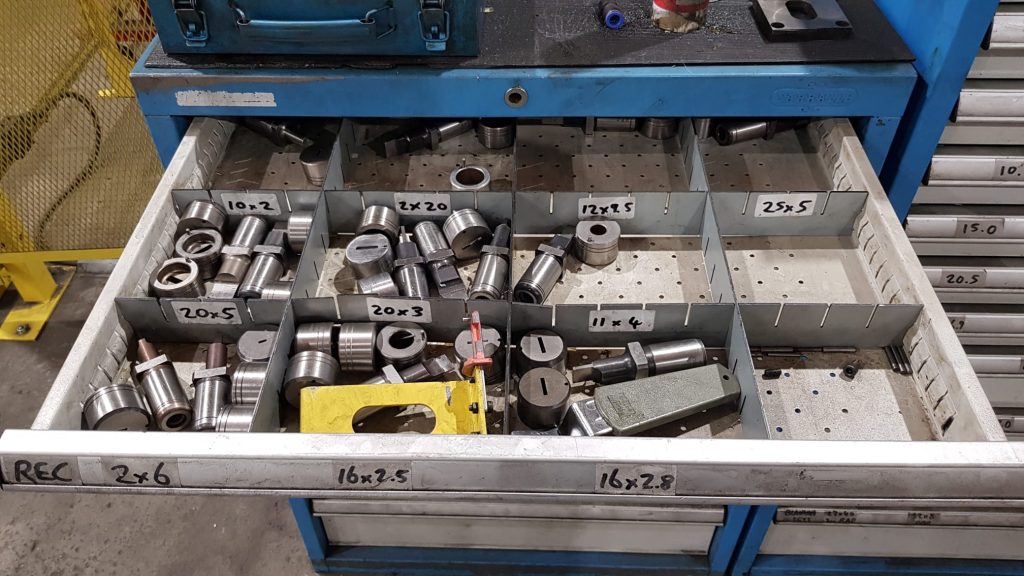

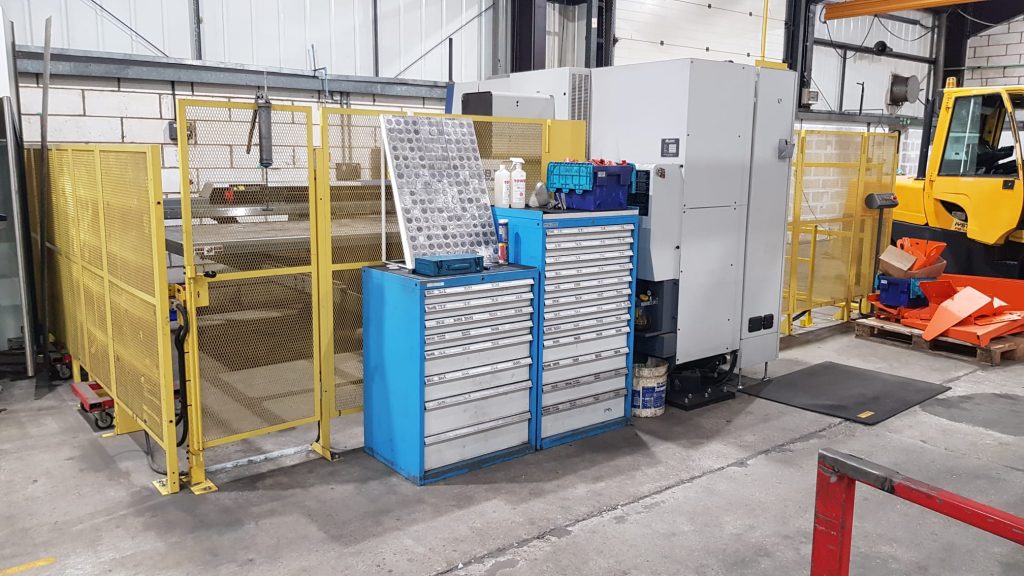

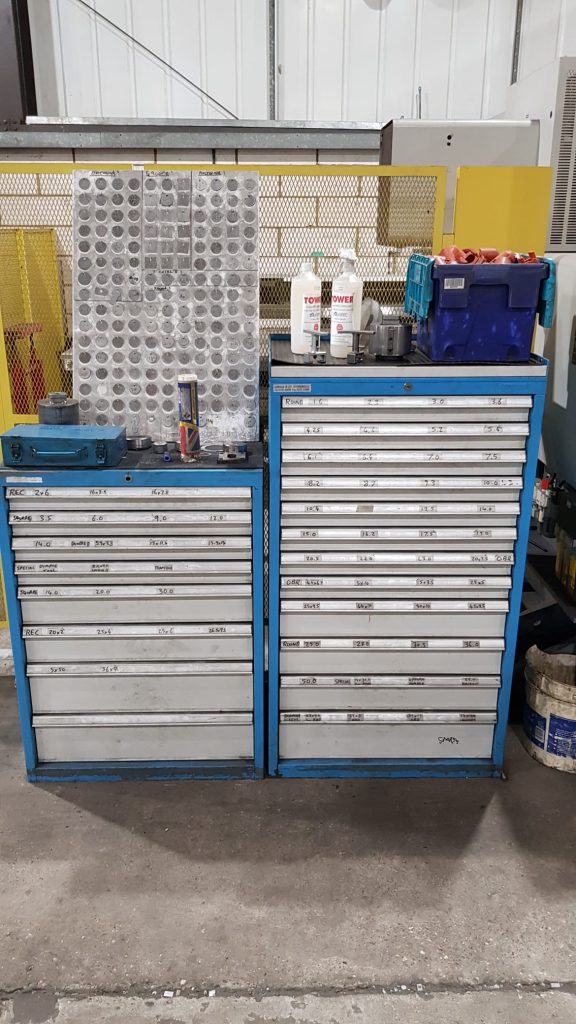

| PLUS | GOOD SET OF TOOLING ONE OWNER FROM NEW VERY LESS HOURS SAFETY GUARDS |
