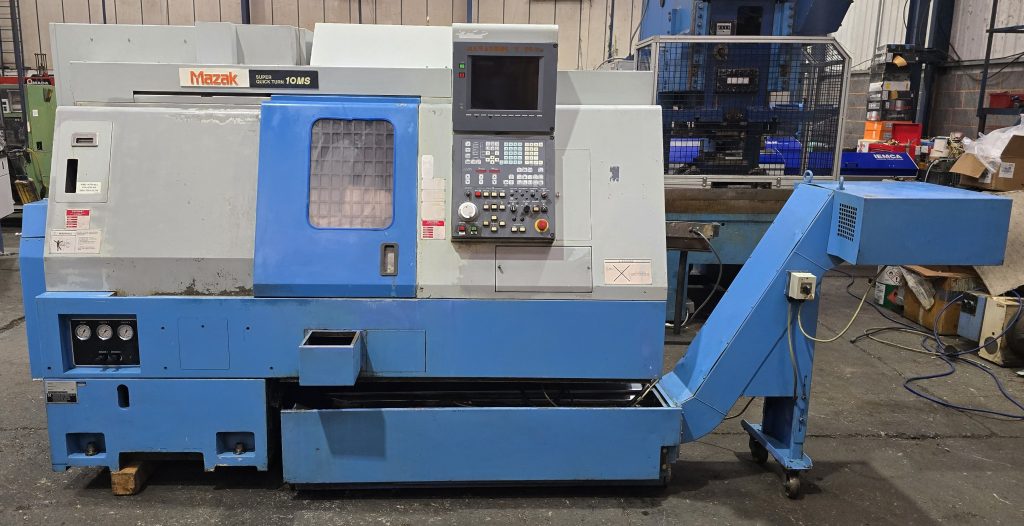

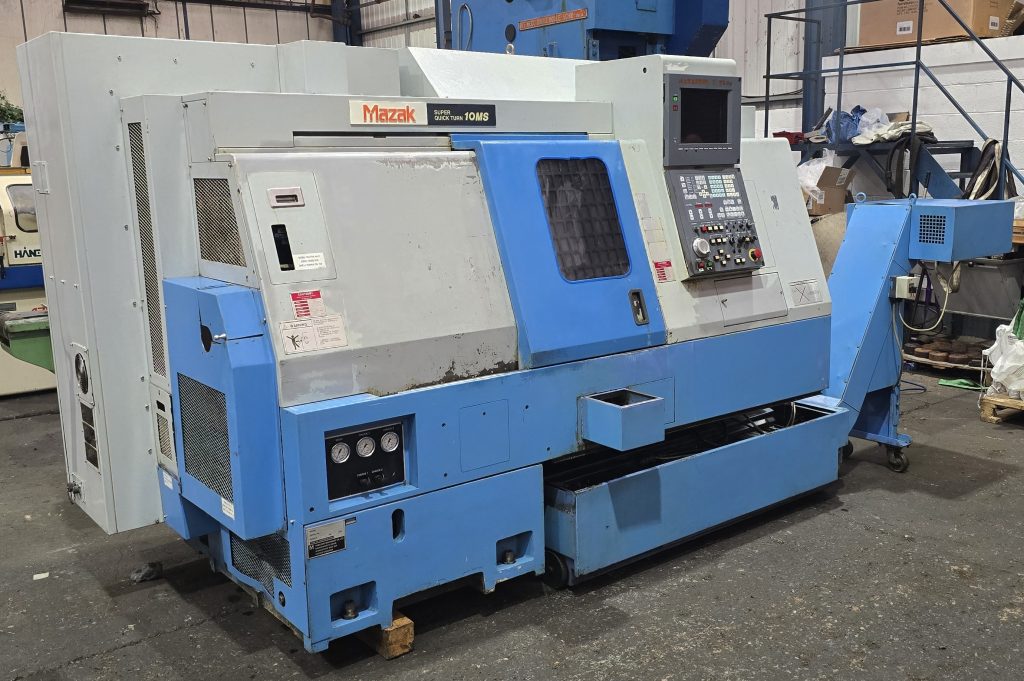

MAZAK SUPER QUICK TURN 10 MS CNC LATHE (REF 1004)
| SPECIFICATIONS | |
|---|---|
| MAKE | MAZAK, MADE IN JAPAN |
| MODEL | SUPER QUICK TURM 10 MS |
| YEAR | 1996 |

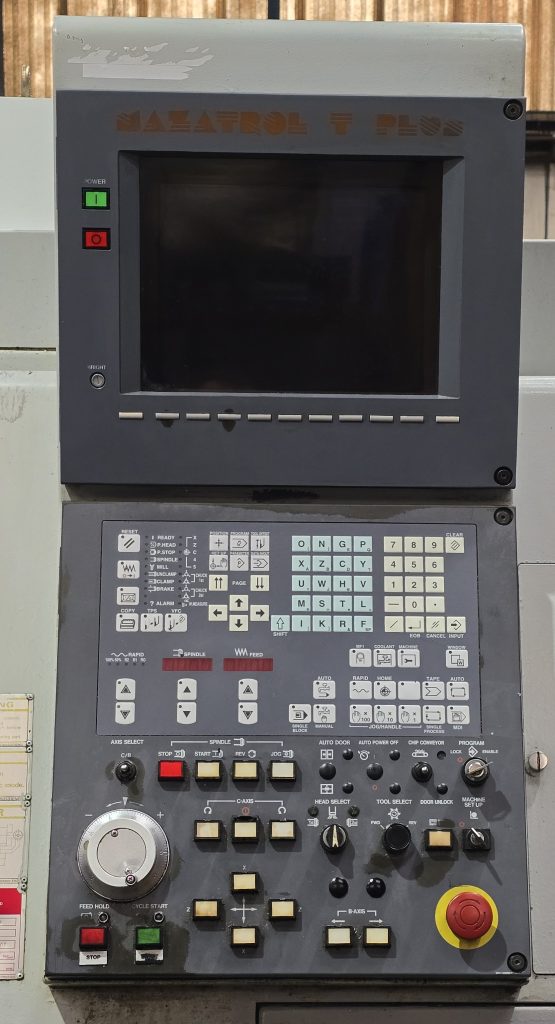

| CONTROL | MAZATROL T PLUS |
| MAX SWING | 435mm |
| SWING OVER CARRIAGE | 370mm |
| MAX. MACHINING DIA | 230mm |
| MAX. BAR WORK DIA | 42mm |
| MAX DISTANCE BETWEEN SPINDLES | 705mm |
| SPINDLE MOTOR | AC11kw (15HP) |
| SPINDLE SPEED | 6000rpm |
| 2ND SPINDLE MOTOR | AC5.5kw (7.5HP) |
| 2ND SPINDLE SPEED | 6000 rpm |
| ROTARY TOOL MOTOR | AC2.2kw (3HP) |
| ROTARY TOOL SPEED | 3000 rpm |

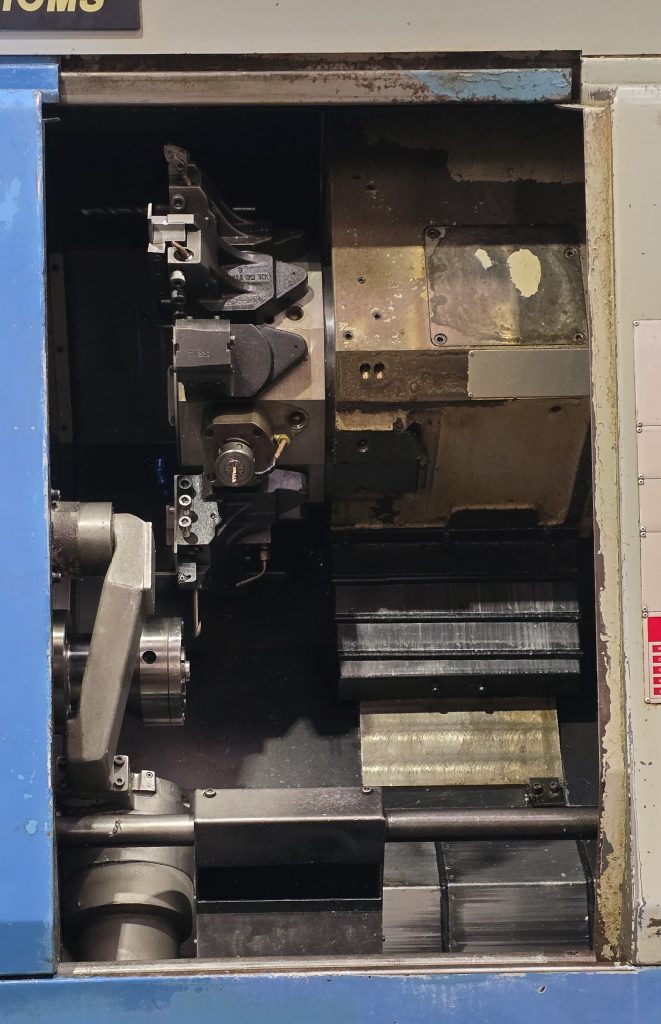

| TURRET TOOL CAPACITY | 12 TOOLS STATIONS |
| RAPID TRAVERSE RATE | X,Z:30m/min (1180IPM),C: 400rpm |
| MACHINE DIMENSION | L x W x H, 2705mm x 1465mm x 1835mm |
| MACHINE WEIGHT | 3850kg |

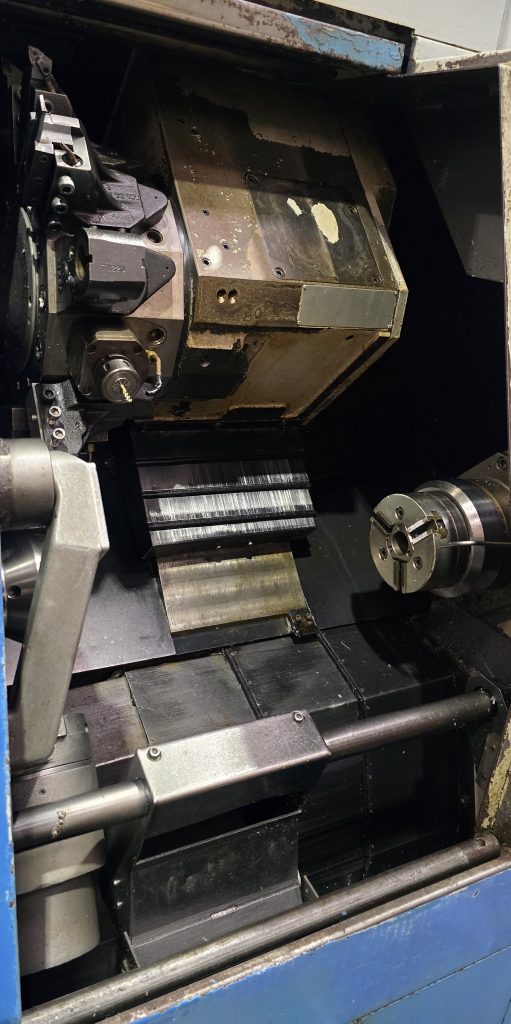

| PLUS | C-AXIS SUB SPINDLE DRIVEN TOOLS (3 NO.S) PARTS CATCHER SWARF CONVEYOR TOOL SETTING PROBE COLLET CHUCK BUILT IN TRANSFORMER FULL SET OF MANUALS GOOD WORKING ORDER |
